Motor cu piston 800N - cursa maxima 1000 mm
Descriere
Curse disponibile :180 - 230 - 350 - 550 - 750 - 1000 mm
Putere 800 N
Viteza de deschidere : 14 mm/s
Temperatura de functionare : -5 +55 °C
Gradul de protectie : IP 55

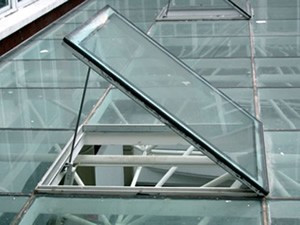

Aplicatii : luminatoare, trape de fum, ferestre luminator dimensiuni mari.
Electrical linear actuator , with tilting self-aligning movement, with rack, with brackets and accessories for top hung windows. Operation at
230V~50Hz or, as an alternative, at 24V DC. Max. traction and thrust force 800N. Pre-set for the mechanical or electronic connection of two or more
push-points. Limit switch by Diodo hall. CE marked device, complying with the EN12101-2 standard for smoke and heat evacuation systems (only 24V
version).
Technical characteristics T80 230 V T80 24 V
Power supply voltage 230V ~ 50Hz 24V
Max recommended load 800N
Max recommended load 2 push points (1 master + 1 slave) 750N
Max recommended load 2 push points (1 master + 1 master) 1200N
Max recommended load 3 push points (1 master + 2 slaves)* 700N
Distance between 2 push points max 3 m - min 1m.
Strokes 180 - 230 - 350 - 550 - 750 - 1000 mm
Absorbed current 0,30 A 1,35 A
Double electrical insulation YES -
Service type S2 of 4 min
Operating temperature -5° +55° C
Protection degree of electric devices IP55
Parallel connection of two or more actuators YES
Connection and synchronisation of 1 T80 + racks on the same window mechanical, by transmission rod
End of stroke electronic
Dimensions from 571,6 up to 1391,6x68,7x137,4 mm
* On the same window frame can be mounted up to 5 drives. Ask our technical dept. for the placement of the pushing points and the calculation of the
thrust force.
Applications: top hung windows, domes, louvers.
